Detectra Technologies — Hazard Monitoring

MDU Series

MobileDetectionUnit

Rugged, modular air quality monitoring engineered for First Responders and Hazmat teams. Real-time chemical detection, cloud-connected, built for the field.

First Responder Grade LTE Connected Multi-Gas Detection Radiation Capable

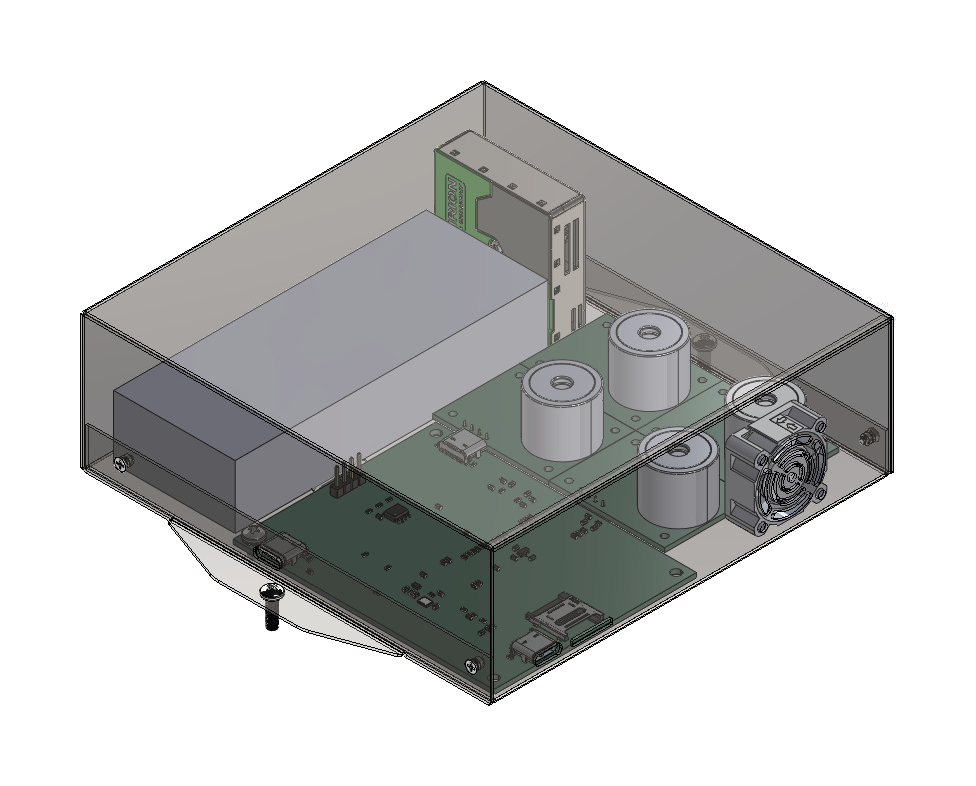

Detectra MDU — Mobile Detection Unit
10+
Detection Targets
<60s
Cloud Latency
1Hz
Sample Rate
2
Deployment Variants

Why MDU

Built for the front line

🧪

Broad Chemical Coverage

Electrochemical, PID, PM, LEL, and radiation sensors in a single modular unit — configured to your mission requirements.

⚡

Sub-60s Cloud Latency

Data reaches your command team in under 60 seconds. Real-time situational awareness on web and mobile dashboards.

🔩

Rugged Stainless Build

Stainless steel enclosure with corner LED status indicators. Designed for the environments first responders actually work in.

📡

Online & Offline Variants

LTE-connected for full cloud access, or 915MHz local for classified and infrastructure-free deployments.

☁️

Cloud Control

Configure, monitor, and command devices remotely. Full web analytics and mobile quick-glance interface included.

🔧

Modular Sensor Stack

Daisy-chained sensor boards cover gases, particulates, LEL, PID, and radiation. Swap in what each deployment needs.

Detection Capability

What the MDU Monitors

The MDU supports a broad array of electrochemical and physical sensors, providing comprehensive hazard coverage for preliminary investigation in unknown environments.

H₂ Hydrogen
HCl Hydrogen Chloride
HCN Hydrogen Cyanide
HF Hydrogen Fluoride
Cl₂ Chlorine
LEL Lower Explosive Limit
TVOC Total VOC (PID)
PM 1 / 2.5 / 4 / 10 µm
T / RH / P Temp, Humidity, Pressure
Radiation Geiger Counter
Connectivity & Data
📡
LTE Cat.M / NB-IoT Online variant — requires SIM card and data plan
📻
915 MHz Radio Offline variant — proprietary protocol for high-security deployments
🔒
MQTT QoS 2 Class 2 data protection, guaranteed message delivery
💾
SD Card Backup Local high-frequency logging — no gaps, even offline
⏱
0.5–1 Hz Sampling 1–2 second interval, <60s end-to-end latency

Configuration Options

Choose Your Deployment Variant

MDU-C Online Variant
Cloud Connected
Communication LTE Cat.M and NB-IoT
Interface Full cloud web + mobile dashboard
Data Analysis Full analytics, 30-day peaks & averages
Storage Cloud — high-frequency data retention limited
Requires SIM card + data plan
Best For Standard deployments, command visibility
MDU-L Offline / Local Variant
Air-Gap Secure
Communication 915 MHz Proprietary Radio
Interface Local interface
Data Analysis Limited analysis tools
Storage All data stored locally, indefinitely
Requires No network infrastructure
Best For Classified zones, remote or air-gapped operations

Technical Specifications

Full Spec Sheet

Physical
Dimensions 200 × 100 × 50 mm
Enclosure Stainless Steel
Status Indicators 4× Corner LEDs
Certification IECEx / ATEX (In Development)
Sampling & Performance
Sample Rate 0.5–1 Hz (1–2s per sample)
End-to-End Latency < 60 seconds
Calibration Factory Pre-Calibrated
Averaging Continuous on-board
Connectivity
Online Protocol LTE Cat.M / NB-IoT
Offline Protocol 915 MHz Proprietary
Data Protocol MQTT QoS 2
GNSS Yes (when not sampling)
Local Storage SD Card

Get Started

Ready to Deploy
the MDU?

Contact our team to discuss your deployment requirements, sensor configuration, and pricing.

Get in Touch Download Datasheet
